XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics

Merknaam:	GQZ
Modelnummer:	XR820061
MOQ:	5 stuks
Prijs:	$1709-$1729
Levertijd:	3 Werkdagen nadat uw betaling is ontvangen
Betalingsvoorwaarden:	T/T of Western Union of PayPal

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

ISO9001/ISO14001/GJB9001

Materiaal:

GCr15 Dragend Staal

Productnaam:

Gekruist Rollager

Identiteitskaart (mm):

OD ((mm):

Breedte (mm):

Precisiebeoordeling:

Structuur:

Taps toelopen

Garantie:

12 maanden

Verpakking Details:

Eerst verpakt in Carton, en vervolgens versterkt met houten kast voor buitenverpakking

Levering vermogen:

3.000 stuks per maand

Productbeschrijving

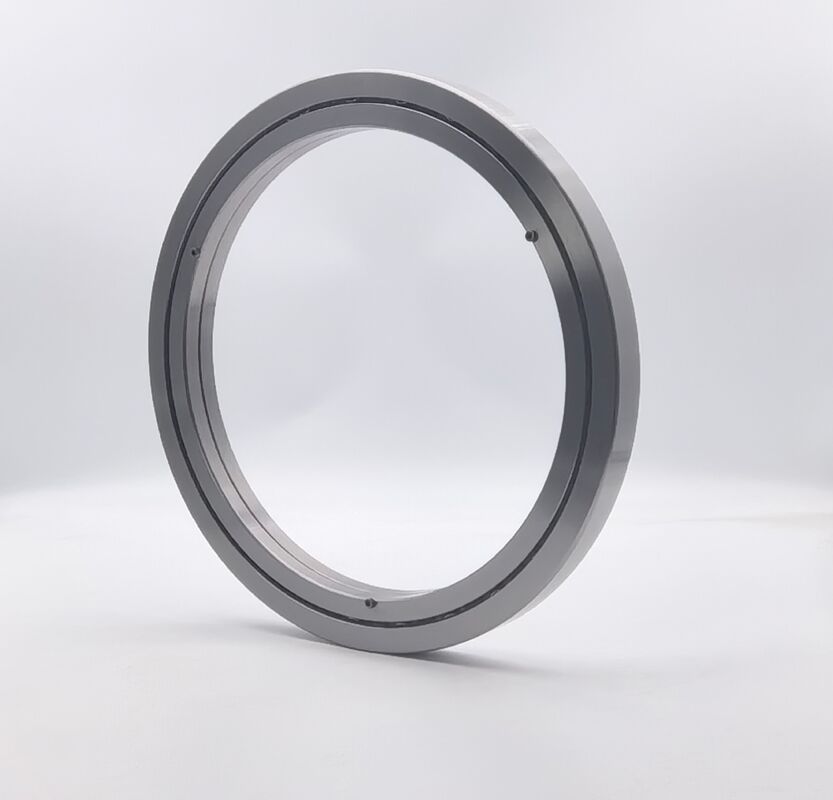

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics

Product Overview

The XR820061 Cross Roller Bearing is a large-size, high-precision bearing designed for CNC machines, robotics, and heavy industrial equipment. With dimensions of 580mm inner diameter, 760mm outer diameter, and 80mm width, it delivers excellent rigidity, smooth rotation, and stable load performance.

Unlike tapered designs, the crossed cylindrical roller structure ensures uniform load distribution and higher rotational accuracy, making it ideal for precision positioning systems.

Model: XR820061
Size: 580x760x80mm
Type: Cross Roller Bearing (Cylindrical Rollers)
High precision and rigidity
Designed for CNC and robotics applications

Key Features

Crossed Cylindrical Roller Design: Ensures high rotational accuracy and smooth motion.
High Rigidity Structure: Provides excellent stiffness under load.
Multi-Directional Load Capacity: Supports radial, axial, and moment loads simultaneously.
Large Size Capability: Suitable for heavy-duty and large-scale systems.
Low Friction Operation: Reduces vibration and improves performance.
Durable Construction: Heat-treated bearing steel for long service life.

Technical Specifications

Parameter	XR820061
Model	XR820061
Inner Diameter (ID)	580 mm
Outer Diameter (OD)	760 mm
Width (H)	80 mm
Type	Cross Roller Bearing
Structure	Crossed Cylindrical Rollers
Material	Bearing Steel
Preload	Custom
Accuracy Class	P5 / P4 optional
Application	CNC Machines, Robotics, Heavy Equipment

Applications

Industrial Robots – High precision for joint movement and positioning.
CNC Machine Tools – Stable and accurate machining performance.
Automation Equipment – Reliable motion control systems.
Heavy Machinery – Suitable for large-scale industrial applications.

Timken	KG	d	D	B	r	Cr (KN)	Co (KN)	Cr (KN)
-	4.9	150	230	30	1	95.2	156	111	279	1100
-	5.15	160	240	30	1.1	96.8	162	118	300	1000
-	6.7	200	280	30	1.5	102	175	120	320	9000
XR496051	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
XR496052	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
-	5.4	240	300	30	1	88	184	114	361	750
-	4.5	250	310	25	1	88	188	114	361	700
-	13	250	350	40	1.3	187	355	228	657	670
JXR637050	12.5	300	400	36.492	1.5	183	355	223	657	560
JXR637050	12.5	300	400	37	1.5	183	355	223	657	560
JXR678054	38	300	480	60	1.5	258	495	35	920	600
JXR652050	19.5	310	425	45	2.5	216	427	281	837	640
JXR678052	32	330.2	457.2	63.5	3.3	264	515	312	954	620
-	27	350	470	50	3.3	308	635	376	1180	560
JXR699050	30	370	495	50	3.3	93.6	-	119	-	600
-	15	400	480	40	1.1	216	497	281	957	430
-	46.5	400	550	60	2.5	429	920	523	1700	400
XR736052	27.5	432.003	571.5	38.1	3.3	83	910	530	1600	400
JXR766051	51	457.2	609.6	63.5	3.3	396	856	514	1680	420
JXR766052	62	424.95	614.924	65	3.3	470	960	600	1720	380
JXR820060	100	580	760	80	3.3	627	1380	765	2560	300
JXR820061	100	580	760	80	6.4	627	1380	765	2560	300
JXR836050	148	600	830	80	6.4	680	1460	820	2870	300
JXR8444050	150	685.8	914.4	79.375	6.4	693	1660	900	3250	260
JXR855053	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR855056	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR882054	185	901.7	1117.6	82.555	3	781	2060	1060	4290	200
JXR882055	185	901.7	1117.6	82.555	3.3	781	2060	1060	4290	200
JXR882058	158	939.8	1117.6	82.55	3	920	2580	1200	5000	200
-	215	950	1170	85	3	968	2690	1310	5600	215
JXR889058	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
JXR889059	358	1028.7	1327.15	95.25	3.3	1060	3100	1420	6020	450
JXR889060	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
-	350	1270	1524	95.25	3.3	1300	3830	1760	2980	95
JXR897051	500	1549.4	1828.8	101.6	3.3	1400	4510	1890	9400	80
-	675	1879.6	2197.1	101.6	5.4	1510	5240	2040	10900	43
-	1130	2463.8	2819.4	114.3	5.4	2330	8740	3150	18200	18200

Why Choose GQZ Bearing?

Precision Manufacturing Expertise
Stable Quality & Performance
Flexible Customization Options
Fast Delivery & Global Supply

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics 0

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics 1

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics 2

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics 3

XR820061 Cross Roller Bearing 580x760x80mm TIMKEN Precision Bearing for CNC & Robotics 4

Q1: What is the difference between cross roller and cross tapered roller bearings?
A1: Cross roller bearings use cylindrical rollers for higher precision, while tapered rollers provide higher load capacity.

Q2: Is XR820061 suitable for robotic applications?
A2: Yes, it offers high precision and rigidity for robotic systems.

Q3: Do you support customization?
A3: Yes, we offer customization for preload, precision grade, and materials.

Upgrade your system with XR820061 Cross Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
