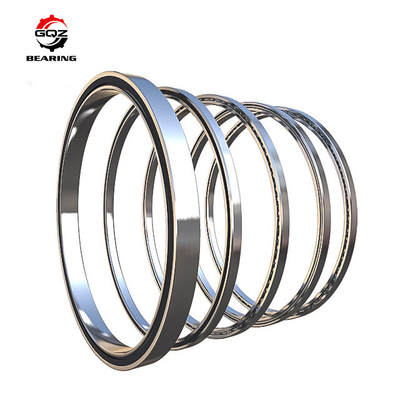

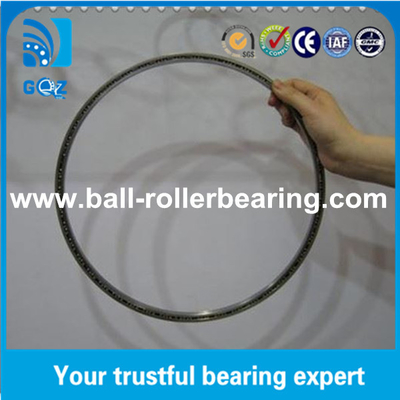

Groot droeg de Precisiekogellager KG250CP0, dun muurlager van de grootte dun sectie
| Productiespecificatie | |
| Productnaam: | Groot droeg lager van de het kogellagerkg250cp0 dunne muur van de grootte het dunne sectie |
| Modelaantal: | KG250CP0 |
| GROOTTE: (dxDxH) mm | 635*685.8*25.4 |
| Aantal Rij: | Enige rijen |
| Ras (ring) materiaal | Chroomstaal |
| Kooi (pal) materiaal: | Messing of plastiek |
| Type: | Bal |
| Precisieclassificatie: | P0, P6, P5, P4, P2 |
| Verbindingentype: | Open of 2Z, Z, RS, 2RS |
| Merknaam: | MBY of OEM |
| Plaats van Oorsprong: | Jiangsu, China (Vasteland) |
| Kwaliteitscontrole: | 100% inspectie vóór verzending |
| Kwaliteitsnorm: | ISO-9001:2008 |
| levertijd: | Voor inventarisgoederen, 3-5 werkdagen na storting, hangen anderen van de orde af. |
| Handelstermijnen: | FOB, FCA, EXW, CIF |
| Betalingstermijnen: | TT 30% storting, 70% saldo vóór verzending |
De dunne reeks van het de groefkogellager van de sectie dunne muur diepe:
| basisafmetingen | gewicht | geschatte lading | maximum snelheid | Verwant modelnr. | ||||
| D | D | B | ||||||
| Statisch | Dynamisch | |||||||
| mm | mm | mm | Kg | Co (N) | Cr (N) | (T/min) | ||
| 355.6 | 371.475 | 7.938 | 0.476 | 25.840 | 7.470 | 1.400 | KB140CP0 | SB140CP0 |
| 355.6 | 374.65 | 9.525 | 0.689 | 30.740 | 9.580 | 1.390 | KC140CP0 | SC140CP0 |
| 355.6 | 381 | 12.7 | 1.238 | 44.130 | 15.390 | 1.380 | KD140CP0 | SD140CP0 |
| 355.6 | 393.7 | 19.05 | 2.722 | 74.060 | 29.450 | 1.360 | KF140CP0 | SF140CP0 |
| 355.6 | 406.4 | 25.4 | 4.899 | 109.520 | 50.180 | 1.330 | KG140CP0 | SG140CP0 |
| 406.4 | 422.275 | 7.938 | 0.544 | 29.450 | 8.060 | 1.230 | KB160CP0 | SB160CP0 |
| 406.4 | 425.45 | 9.525 | 0.785 | 35.050 | 10.320 | 1.220 | KC160CP0 | SC160CP0 |
| 406.4 | 431.8 | 12.7 | 1.406 | 50.220 | 16.410 | 1.210 | KD160CP0 | SD160CP0 |
| 406.4 | 444.5 | 19.05 | 3.221 | 84.070 | 31.600 | 1.190 | KF160CP0 | SF160CP0 |
| 406.4 | 457.2 | 25.4 | 5.579 | 124.150 | 52.580 | 1.180 | KG160CP0 | SG160CP0 |
| 457.2 | 473.075 | 7.938 | 0.612 | 33.090 | 8.610 | 1.090 | KB180CP0 | SB180CP0 |
| 457.2 | 476.25 | 9.525 | 0.88 | 39.320 | 11.020 | 1.090 | KC180CP0 | SC180CP0 |
| 457.2 | 482.6 | 12.7 | 1.579 | 56.270 | 17.490 | 1.080 | KD180CP0 | SD180CP0 |
| 457.2 | 495.3 | 19.05 | 3.583 | 94.120 | 33.620 | 1.070 | KF180CP0 | SF180CP0 |
| 457.2 | 508 | 25.4 | 6.214 | 138.740 | 55.010 | 1.050 | KG180CP0 | SG180CP0 |
| 508 | 523.875 | 7.938 | 0.68 | 36.700 | 9.130 | 980 | KB200CP0 | SB200CP0 |
| 508 | 527.05 | 9.525 | 0.98 | 43.590 | 11.680 | 980 | KC200CP0 | SC200CP0 |
| 508 | 533.4 | 12.7 | 1.746 | 62.360 | 18.520 | 980 | KD200CP0 | SD200CP0 |
| 508 | 546.1 | 19.05 | 4.037 | 104.180 | 35.520 | 960 | KF200CP0 | SF200CP0 |
| 508 | 558.8 | 25.4 | 7.167 | 153.330 | 58.020 | 950 | KG200CP0 | SG200CP0 |
| 635 | 654.05 | 9.525 | 1.22 | 54.270 | 13.180 | 790 | KC250CP0 | SC250CP0 |
| 635 | 660.4 | 12.7 | 2.173 | 77.580 | 20.860 | 780 | KD250CP0 | SD250CP0 |
| 635 | 673.1 | 19.05 | 4.944 | 129.270 | 39.870 | 780 | KF250CP0 | SF250CP0 |
| 635 | 685.8 | 25.4 | 8.845 | 189.850 | 64.900 | 770 | KG250CP0 | SG250CP0 |
| 762 | 781.05 | 9.525 | 1.456 | 64.990 | 14.500 | 660 | KC300CP0 | SC300CP0 |
| 762 | 787.4 | 12.7 | 2.599 | 92.790 | 22.920 | 660 | KD300CP0 | SD300CP0 |
| 762 | 800.1 | 19.05 | 5.897 | 154.350 | 43.720 | 650 | KF300CP0 | SF300CP0 |
| 762 | 812.8 | 25.4 | 10.569 | 226.370 | 71.010 | 650 | KG300CP0 | SG300CP0 |
| 889 | 927.1 | 19.05 | 6.849 | 179.490 | 47.160 | 560 | KF350CP0 | SF350CP0 |
| 889 | 939.8 | 25.4 | 12.292 | 262.890 | 76.490 | 560 | KG350CP0 | SG350CP0 |
| 1016 | 1054.1 | 19.05 | 7.802 | 204.570 | 50.270 | 490 | KF400CP0 | SF400CP0 |
| 1016 | 1066.8 | 25.4 | 13.971 | 299.410 | 81.430 | 490 | KG400CP0 | SG400CP0 |
Toepassingsgebieden: Dunne sectie dunne muur die diep groefkogellager dragen
Op vele gebieden, worden de diepe groefkogellagers gebruikt. voor dunne sectie zijn de gebruikte lagers ook wijdverspreid. zoals industrical machines, ruimte & defensie, olie & gas, medische, halfgeleidermachines, duurzame energie enz.
