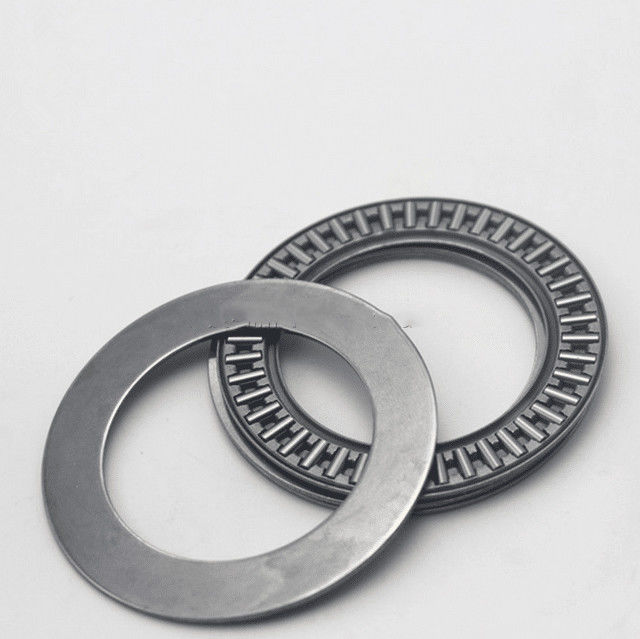

6x19x2mm Axial AXK-serie stuwknaaldrollagers AXK0619, AXK3552 Lagers 35x52x2 mm
Specificatie van het naaldrollager:
| Producten | AXK0619 lagers 6X19X2MM rollagers en wasmachines van China |
| Model nr. | AXK0619 |
| Grootte | 6X19X2MM |
| Materiaal | Chroomstaal ((GCr15), koolstofstaal, roestvrij staal |
| Type | met een gewicht van niet meer dan 10 kg |
| Precision Rating | ABEC-1 (P0), ABEC-3 (P6), ABEC-5 (P5) |
| Vergunning | C0,C2,C3,C4,C5 is beschikbaar |
| Kwaliteitsniveau | Z1,Z2,Z3,Z4 |
| Vibratieniveau | V1, V2.V3 |
| Glijmiddel | vet |
| OEM-producten | Accepteer. |
| Proefproef | Goed. |
|
verpakking
|
polyzak + karton + houten pallet
|
Naaldrollagers Toepassingen:
Auto's, motorfietsen, elektrische gereedschappen, kleine apparaten, textielmachines, drukkerijen, sportapparatuur, medisch apparaat, printer, tellermachine, modelvliegtuig, enz.
Verpakkingsgegevens voor naaldrollagers:
1. industriële verpakking: industrieel papier of buis + karton + pallet
2. individuele verpakking: enkelkleurige doos + karton + pallet
3. op basis van de eisen van de klant
| Schacht |
Axial naaldroller en cage assemblies |
Vervaardiging uit elektrische apparaten | Afmeting ((mm) | ||||||||||
|
Diameter (mm) |
Code |
Lagers wasmachine |
Schacht De ring |
Zitting De ring |
Achsaalslagers wasmachine |
Dcl | D1 | Dc | d1 | D.W. | B1 | B. | a. |
| d | D | r min | |||||||||||
| 4 | AXK0414TN | AS0414 | — | — | — | 4 | — | 14 | — | 2 | 1 | — | — |
| 5 | AXK0515TN | AS0515 | — | — | — | 5 | — | 15 | — | 2 | 1 | — | — |
| 6 | AXK0619TN | AS0619 | LS0619 | — | — | 6 | — | 19 | — | 2 | 1 | 2.75 | 0.3 |
| 8 | AXK0821TN | AS0821 | LS0821 | — | — | 8 | — | 21 | — | 2 | 1 | 2.75 | 0.3 |
| 10 | AXK1024 | AS1024 | LS1024 | — | — | 10 | — | 24 | — | 2 | 1 | 2.75 | 0.3 |
| 12 | AXK1226 | AS1226 | LS1226 | — | — | 12 | — | 26 | — | 2 | 1 | 2.75 | 0.3 |
| 15 | AXK1528 | AS1528 | LS1528 | GS81102 | WS81102 | 15 | 16 | 28 | 28 | 2 | 1 | 2.75 | 0.3 |
| 17 | AXK1730 | AS1730 | LS1730 | GS81103 | WS81103 | 17 | 18 | 30 | 30 | 2 | 1 | 2.75 | 0.3 |
| 20 | AXK2035 | AS2035 | LS2035 | GS81104 | WS81104 | 20 | 21 | 35 | 35 | 2 | 1 | 2.75 | 0.3 |
| 25 | AXK2542 | AS2542 | LS2542 | GS81105 | WS81105 | 25 | 26 | 42 | 42 | 2 | 1 | 3 | 0.6 |
| 30 | AXK3047 | AS3047 | LS3047 | GS81106 | WS81106 | 30 | 32 | 47 | 47 | 2 | 1 | 3 | 0.6 |
| 35 | AXK3552 | AS3552 | LS3552 | GS81107 | WS81107 | 35 | 37 | 52 | 52 | 2 | 1 | 3.5 | 0.6 |
| 40 | AXK4060 | AS4060 | LS4060 | GS81108 | WS81108 | 40 | 42 | 60 | 60 | 3 | 1 | 3.5 | 0.6 |
| 45 | AXK4565 | AS4565 | LS4565 | GS81109 | WS81109 | 45 | 47 | 65 | 65 | 3 | 1 | 4 | 0.6 |
| 50 | AXK5070 | AS5070 | LS5070 | GS81110 | WS81110 | 50 | 52 | 70 | 70 | 3 | 1 | 4 | 0.6 |
| 55 | AXK5578 | AS5578 | LS5578 | GS81111 | WS81111 | 55 | 57 | 78 | 78 | 3 | 1 | 5 | 0.6 |
| 60 | AXK6085 | AS6085 | LS6085 | GS81112 | WS81112 | 60 | 62 | 85 | 85 | 3 | 1 | 4.75 | 1 |
| 65 | AXK6590 | AS6590 | LS6590 | GS81113 | WS81113 | 65 | 67 | 90 | 90 | 3 | 1 | 5.25 | 1 |
| 70 | AXK7095 | AS7095 | LS7095 | GS81114 | WS81114 | 70 | 72 | 95 | 95 | 4 | 1 | 5.25 | 1 |
| 75 | AXK75100 | AS75100 | LS75100 | GS81115 | WS81115 | 75 | 77 | 100 | 100 | 4 | 1 | 5.75 | 1 |
| 80 | AXK80105 | AS80105 | LS80105 | GS81116 | WS81116 | 80 | 82 | 105 | 105 | 4 | 1 | 5.75 | 1 |
| 85 | AXK85110 | AS85100 | LS85110 | GS81117 | WS81117 | 85 | 87 | 110 | 110 | 4 | 1 | 5.75 | 1 |
| 90 | AXK90120 | AS90120 | LS90120 | GS81118 | WS81118 | 90 | 92 | 120 | 120 | 4 | 1 | 6.5 | 1 |
| 100 | AXK100135 | AS100135 | LS100135 | GS81120 | WS81120 | 100 | 102 | 135 | 135 | 4 | 1 | 7 | 1 |
| 110 | AXK110145 | AS110145 | LS110145 | GS81122 | WS81122 | 110 | 112 | 145 | 145 | 4 | 1 | 7 | 1 |
| 120 | AXK120155 | AS120155 | LS120155 | GS81124 | WS81124 | 120 | 122 | 155 | 155 | 4 | 1 | 7 | 1 |
| 130 | AXK130170 | AS130170 | LS130170 | GS81126 | WS81126 | 130 | 132 | 170 | 170 | 5 | 1 | 9 | 1 |
| 140 | AXK140180 | AS140180 | LS140180 | GS81128 | WS81128 | 140 | 142 | 180 | 178 | 5 | 1 | 9.5 | 1 |
| 150 | AXK150190 | AS150190 | LS150190 | GS81130 | WS81130 | 150 | 152 | 190 | 188 | 5 | 1 | 9.5 | 1 |
| 160 | AXK160200 | AS160200 | LS160200 | GS81132 | WS81132 | 160 | 162 | 200 | 198 | 5 | 1 | 9.5 | 1 |
